Connector Backshell Configurator

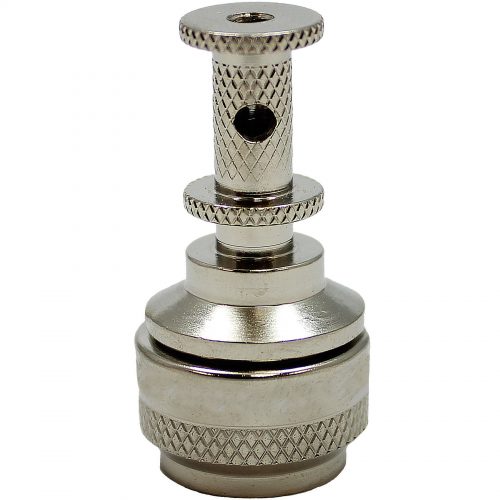

Backshell Configurator

1 Choose Your Connector Designator

Choose the connector designator for your backshell. Reference the chart below if needed.

Connector Designator

Connector Options
CONNECTOR DESIGNATOR CONNECTOR SPECIFICATION SERIES CONNECTOR SHELL SIZES (dependent on connector part number)
A MIL-C-5105 MIL-C-26482 MIL-C-81703 MIL-C-83723 DEF 5926-3 LN 29504 NFC 93422 PAN 6432-1 PAN 6432-2 PATT 602 MS3400 Ⅱ Ⅲ Ⅰ & Ⅲ 08, 10, 12, 14, 18, 20, 22, 24
D MIL-C-26482 Ⅰ 08, 10, 12, 14, 16, 18, 20
F MIL-C-38999 4CM38277 NFC 93422 Ⅰ & Ⅱ 08, 10, 12, 14, 16, 18, 20, 22, 24
G MIL-C-28840 09, 11, 13, 15, 17, 19, 23
H MIL-C-38999 Ⅲ & Ⅳ 09, 11, 13, 15, 17, 19, 21, 23, 25

If you do not see the connector designator you need, contact us at (316) 682-5634.

2 Choose Your Angular Type

Choose the angle of your backshell (Straight, 90°, or 45°).

Angular Type

3 Isodyne Series Backshell

Choose the Isodyne backshell series you need. Reference the chart below if needed.

Series Designator

Backshell Series Standard Mil Connectors Quick-tie Strain Relief Double Banding Spring Band Boot Groove Straight 45° 90° Split Access Termination Slots D-Sub
 RJ45  x  x  x  x
101  x  x  x  x  x
135  x  x  x  x  x  x  x  x
150  x  x  x  x  x  x  x
 155  x  x  x  x  x  x  x  x
 160  x  x  x  x  x  x  x  x
165  x  x  x  x x  x  x  x  x
 170  x  x  x  x  x  x
 180  x  x  x  x  x  x  x  x
 191  x  x  x  x  x  x
 200  x  x  x  x  x  x  x  x  x
205  x  x  x  x  x  x  x  x  x
 207  x  x  x  x  x  x  x  x
215  x  x  x  x  x  x  x
 605  ARINC  x  x  x  x  x  x  x

We do not have all our series' on the website. If you do not see the series of backshell you need, contact us at (316) 682-5634.

4 Choose Your Finish

Choose the finish of the backshell that you need. Reference the chart below for finish codes.

Finish

Backshell Finishes
B Cadmium / Olive Drab
J Gold Iridite over Cadmium Plate over Nickel
LF Cadmium Plate / Bright Over Electroless Nickel
M Electroless Nickel
N Cadmium Plate / Olive Drab over Nickel
P2 Nickel Plate IAW SAE-AMS-QQ-N-290, Class I Grade D over Double Zincate Coating IAW ASTM-B-253
NF CAD / OD Over Electroless Nickel (500 HR. Salt Spray)
NT Nickel / Teflon - Consult Factory for Details
T Cadmium Plate / Bright DMP over Nickel
U Cadmium Plate / Black
Z1 Passivate SS
ZN Zinc Nickel / OD over Electroless Nickel
ZNU Zinc Nickel with Black Chromate

5 Backshell Shell Size

Choose the shell size for the backshell that you need.

Shell Size

  • (54)
  • (54)
  • (54)

6 Cable Entry Size

Choose the cable entry size for the backshell that you need. Reference the chart below for size codes.

Cable Entry Size

Cable Entry Designator Cable Entry Size in Inches
01 .125
31 .188
02 .250
32 .312
03 .375
33 .438
04 .500
34 .562
05 .625
35 .688
06 .750
36 .812
07 .875
37 .938
08 1.000
38 1.062
09 1.125
10 1.250
11 1.375
12 1.500
13 1.625
14 1.750
15 1.875
16 2.000

If you do not see the cable entry size you need, contact us at (316) 682-5634.

7 Number of Slots

Choose the number of slots for the backshell that you need.

Slots

If you do not see the number of slots you need, contact us at (316) 682-5634.
